Price on application
Utility-scale systems are engineered, configured and priced per project — the final quotation depends on the number of containers, medium-voltage interface, transformer and switchgear, civil and grid-connection works, and the site's duty cycle. Tell us your power, energy and application targets and our engineers will scope and price a complete solution.
Why developers choose the integrated container.

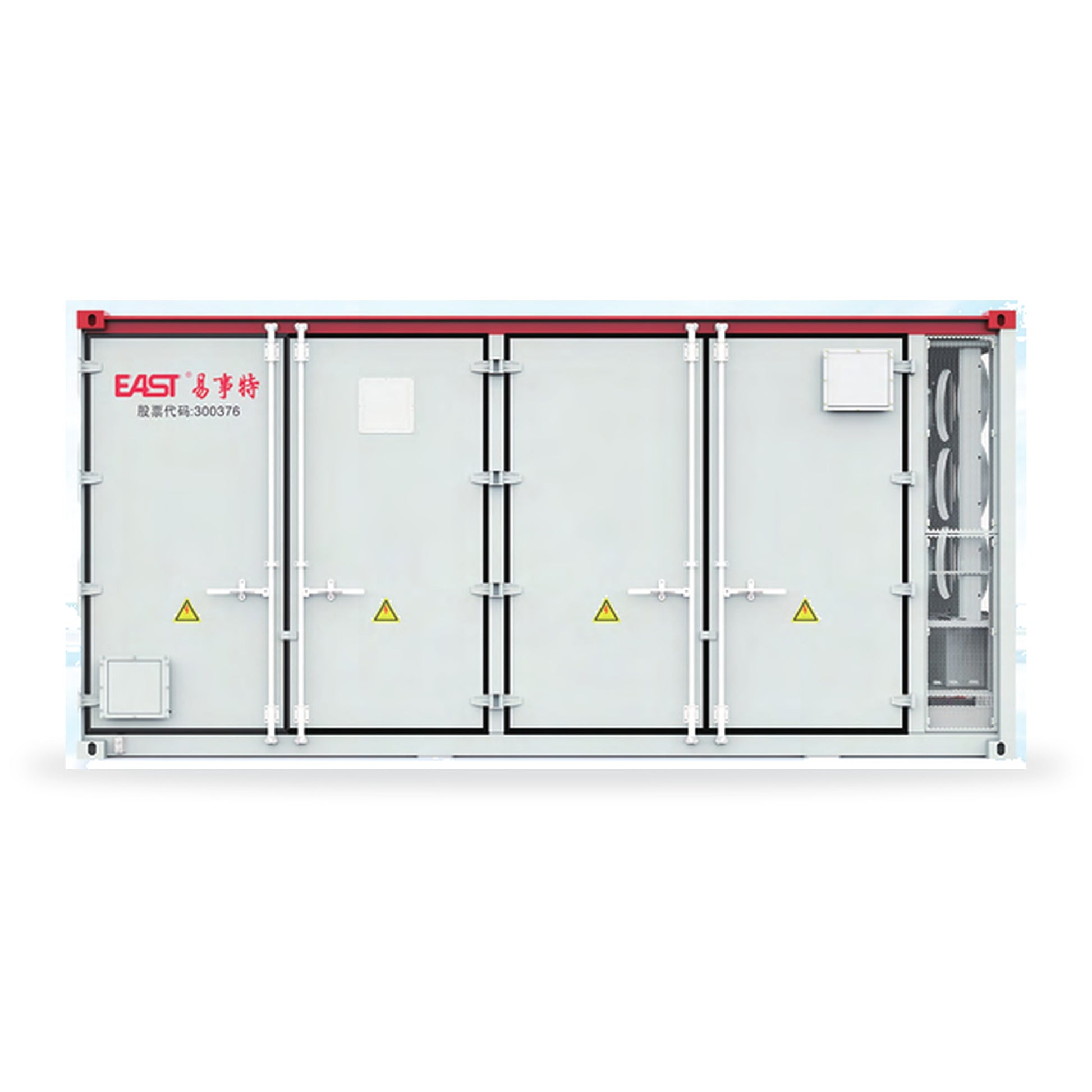

All-in-one 20-ft container
Battery, modular PCS, cooling and fire safety integrated in one shippable 20-foot unit — the fastest to site and commission.
Modular PCS architecture
A modular power-conversion system eliminates circulating current between battery racks, improving reliability and serviceability.
More energy, lower LCOE
Lifetime discharge increased by 6–8% and LCOE reduced 3–5% versus conventional designs — better economics over 20 years.
Higher energy density
~18% higher energy density and a 30% smaller footprint — more MWh on the same pad.
Liquid-cooled & safe
Liquid cooling with flammable-gas detection, active ventilation, optional pack-level suppression and water fire-fighting.
Lower O&M
Integrated design and smart monitoring cut operations-and-maintenance time by around 20%.
Full specifications
| Rated AC output power | 2,500 kVA |
| Max. AC output power | 2,750 kVA |
| Max. output current | 2,510 A |
| Number of AC inputs | 12 |
| Rated output voltage | 690 Vac (3P + PE) |
| AC grid frequency | 50 Hz (45–55 Hz) |
| Grid voltage range | 586.5–759 V |
| Power factor | >0.99 (rated) |
| Reactive PF range | −1 to +1 |
| AC current distortion (THD) | <3% (rated) |
| Isolation method | Non-isolated |
| Cell | LFP 3.2 V / 314 Ah |
| Battery configuration | 12P416S |
| Battery rated capacity | 5,015.96 kWh |
| Battery voltage range | 1,123.2–1,497.6 V |
| Container (W×H×D) | 6058 × 2896 × 2438 mm (20-ft) |
| Weight | ≤ 48 t |
| Protection degree | IP54 |
| Operating temperature | −30 to 60 °C |
| Operating humidity | 0–95% (non-condensing) |
| Max. altitude | 4,000 m |
| Cooling method | Liquid cooling |
| Fire protection | Gas detection + active ventilation + PACK-level (optional) + water |
| Communication | LAN · Modbus TCP · IEC 61850 |
Certifications
GB/T-34120 · GB/T-44026 · UL 9540A · IEC 62619:2022 · IEC 63056:2020 · IEC/EN 62477-1:2023 · IEC 62933-1:2024 · UL 1973:2022 · UN 38.3 · IEC 61000-6-2 / -6-4 · EN 50549-2
Need 10 MWh or a 35 kV interface?
See the Centralized 2.5 MW / 5–10 MWh system — battery containers plus a PCS + transformer skid for direct medium-voltage connection.
Engineered per project
Specifications per the official EAST 2.5MW/5MWh datasheet; subject to change. Final configuration, medium-voltage interface, protection, civil works, grid-connection engineering, commissioning and warranty are confirmed on your project quotation. MyEnergy Solutions is the authorised EAST Group distributor for Sri Lanka and the Maldives.
