Price on application
Centralized utility systems are engineered, configured and priced per project — the final quotation depends on the number of battery containers (5 or 10 MWh), the medium-voltage interface, PCS and transformer skid, switchgear, civil and grid-connection works, and the site's duty cycle. Tell us your power, energy and application targets and our engineers will scope and price a complete solution.
Why developers choose the centralized system.
Direct MV grid connection

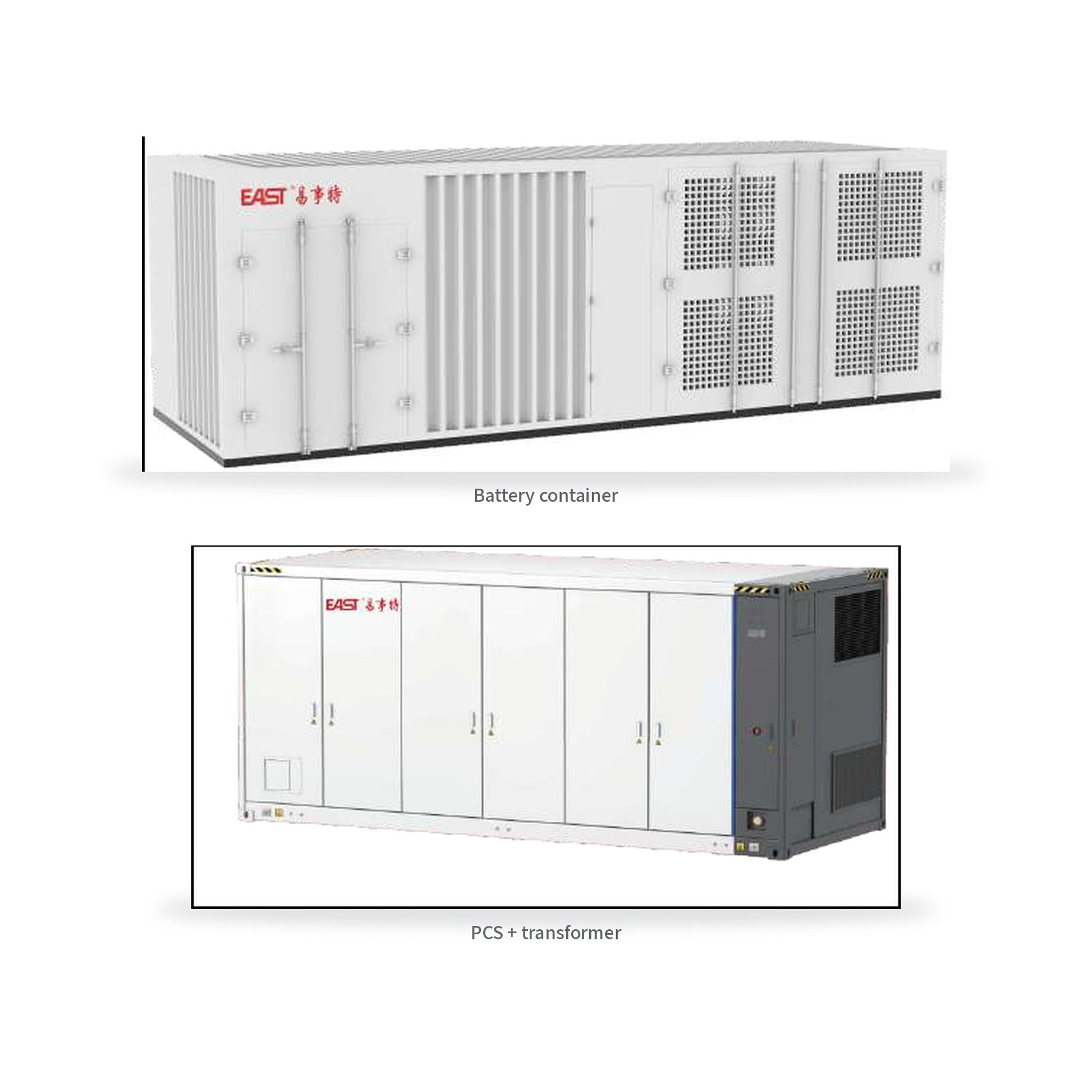

Integrated PCS and step-up transformer skid connect straight to a 35 kV-class medium-voltage bus — no separate customer transformer building required.
Scale energy independently
Add a second battery container to move from ~5 MWh to ~10 MWh on the same 2.5 MW power block — right-size duration to your tariff and duty cycle.
Lower LCOE with 314 Ah cells
Large-format 314 Ah LFP cells cut the levelised cost of storage by 16%+ over the system's operating life.
40% smaller footprint
Containers support side-by-side and back-to-back arrangement, saving up to 40% of the project's footprint.
Multi-layer fire safety
Aerosol suppression, water fire-fighting and explosion-proof ventilation fans protect each container.
Built for harsh sites
IP54 enclosure with C5 anti-corrosion rating and PACK-level IP67, rated −30 to 50 °C for coastal and industrial environments.
Full specifications
| Rated PCS power | 2,500 kW |
| Rated output voltage | AC 690 V |
| Voltage range | 586.5–759 V |
| Power factor | >0.99 |
| AC current distortion (THD) | <3% |
| Reactive power range | −105% to +105% |
| Grid frequency | 50 Hz (46.5–51.5 Hz) |
| Transformer rated capacity | 2,750 kVA |
| Transformer voltage | 37 ± 2 × 2.5% / 0.69 kV |
| Connection group | Dy11 |
| Max. efficiency | ≥ 99% |
| Cell | LFP 3.2 V / 314 Ah |
| Battery configuration | 12P416S (12P416S × 2 for 10 MWh) |
| Rated energy — 5 MWh | 5,015.96 kWh |
| Rated energy — 10 MWh | 10,031.92 kWh |
| Battery voltage range | 1,164.8–1,497.6 V |
| PCS + transformer skid (W×H×D) | 9087 × 2896 × 2438 mm |
| Skid weight | ≈ 20 t |
| Battery container (W×H×D) | 6058 × 2896 × 2438 mm (20-ft) |
| Battery container weight | ≤ 44 t each (≤ 88 t total for 10 MWh) |
| Protection degree | IP54 / C5 · PACK IP67 |
| Operating temperature | −30 to 50 °C |
| Operating humidity | 5–95% (non-condensing) |
| Max. altitude | 4,000 m |
| Cooling method | Liquid cooling (DC) + smart air cooling (AC) |
| Fire protection | Aerosol + water + explosion-proof fan |
| Communication | CAN · RS485 · LAN · Modbus TCP · IEC 61850 |
Certifications
IEC 62619 · IEC 62477 · IEC 62933 · IEC 63056 · IEC 61000-6-2 / -6-4 · UN 38.3
Prefer a single self-contained unit?
See the Integrated 2.5 MW / 5 MWh system — battery, PCS, cooling and fire safety in one 20-foot container with a 690 V low-voltage interface.
Engineered per project
Specifications per EAST's official Utility Energy Storage System (2.5MW/5–10MWh) product data; subject to change. Final configuration, medium-voltage interface, protection, civil works, grid-connection engineering, commissioning and warranty are confirmed on your project quotation. MyEnergy Solutions is the authorised EAST Group distributor for Sri Lanka and the Maldives.
