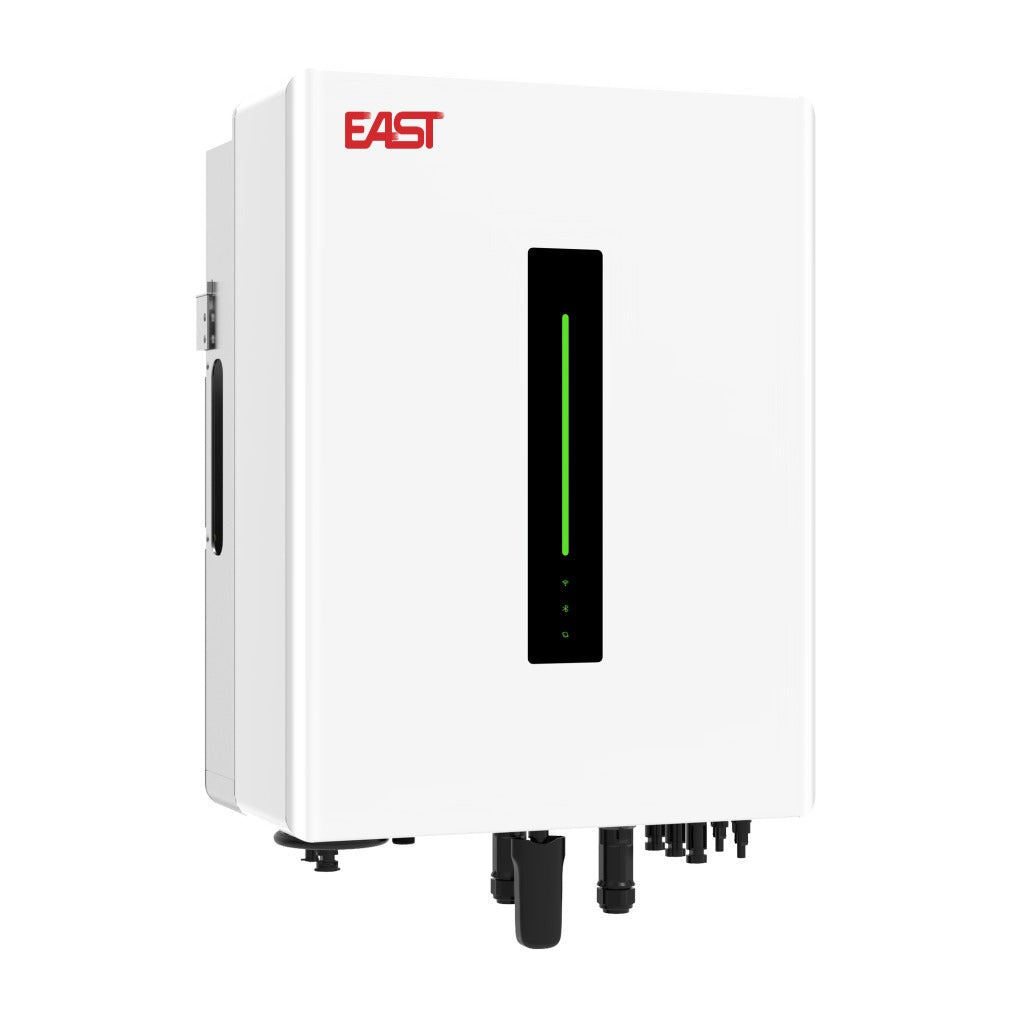

EAST EAHI15KTH 15kW 3ph
Rs 611,000 gets you
The 15kW inverter unit only. Not included: the high-voltage LiFePO4 battery modules and distribution box (priced and sold separately, one distribution box required per cluster of up to four modules), solar panels, and installation and wiring. Your energy consultant sizes and prices the full system on your quotation.
Three-phase hybrid, 15kW.
Three-phase hybrid, 10 to 20kW
Self-consumption, storage and backup for larger premises.
Up to 30kW of high-voltage PV across 2 MPPTs (1000V)
Efficient long strings, lower losses, generous oversizing.
High efficiency, up to 98.2%
More of your solar reaches your loads and battery.
Backup for essential loads
Three-phase backup output, transfer rated ≤10ms; correctly selected essential loads are designed to keep running during interruptions (sensitive equipment may need a dedicated UPS).
Scales with the site
Parallel up to 6 units (120kW) and pair with high-voltage LiFePO4 storage; generator input supported.
IP66, app-monitored, storage-first
Reduced grid dependence and protection from future tariff/export uncertainty.
Technical specifications
| Rated output | 15 kW |
| Output | 3/N/PE, 380/400 V AC three-phase |
| Max PV input | 30 kW |
| PV / MPPT | 1000 V, 2 MPPT, 160-950 V range |
| Battery (HV) | 37.5 A |
| Grid apparent power | 22.5 kVA |
| Backup output | 15 kW |
| Max efficiency | 98.2% (MPPT 99.9%) |
| Cooling / noise | smart, ≤45 dB |
| Chassis | IP66, wall-mounted, non-isolated |
| Parallel | up to 6 units (120 kW) |
| Operating temp / altitude | −25 °C to +60 °C, 3,000 m |
| Dimensions / weight | 500 × 680 × 270 mm, 41 kg |
| Warranty | 10-year warranty on eligible EAST ESS packages. Final warranty terms and covered components will be confirmed in your official quotation. |
Solar PV input / output
PV: up to 30kW across 2 MPPTs at up to 1000V (160-950V range). AC output: 10/15/20kW three-phase at 380/400V.
Battery compatibility
EAST high-voltage LiFePO4 storage (150-600V), sized per system design.
Backup usage
Provides three-phase backup for selected essential loads with a ≤10ms rated transfer. Backup duration depends on battery capacity and selected loads; sensitive equipment may need a dedicated UPS.
Installation requirements
Three-phase supply; wall-mounted; professional installation and sizing by MyEnergy Solutions. Parallel and generator integration optional.
10-year warranty
10-year warranty on eligible EAST ESS packages. Final warranty terms and covered components will be confirmed in your official quotation. Specifications are taken from the official EAST datasheet. MyEnergy Solutions is the authorised EAST Group distributor for Sri Lanka and the Maldives.
EAHI15KTH 15kW Three-Phase Hybrid Inverter, Full specifications
| Max. input power | 30 kW |
| Max. input voltage | 1,000 Vdc |
| Rated input voltage | 650 Vdc |
| Start-up voltage | 180 Vdc |
| Min. operating voltage | 160 Vdc |
| MPPT voltage range | 160-950 Vdc |
| Full-power MPPT range | 625-800 V |
| Max. input current per MPPT | 16 A / 32 A |
| Max. short-circuit current per MPPT | 24 A / 48 A |
| Number of MPPT | 2 |
| Input strings per MPPT | 1 / 2 |
| Battery type | Lithium |
| Voltage range | 150-600 Vdc |
| Max. charge / discharge current | 37.5 A |
| Max. apparent power of grid | 22.5 kVA |
| Max. input current | 34.2 A |
| Input voltage range | 320-480 Vac |
| Input frequency range | 50±5 Hz / 60±5 Hz |
| Rated output power | 15 kW |
| Max. apparent power | 16.5 kVA |
| Grid system mode | 3-phase (3/N/PE), 380 / 400 Vac |
| Rated output frequency | 50 Hz / 60 Hz |
| Rated output current | 22.8 A / 21.7 A |
| Max. output current | 25.1 A / 23.8 A |
| Power factor | >0.99 (0.8 leading to 0.8 lagging) |
| THDi | ≤3% at rated power |
| Max. input power | 15 kW |
| Max. input current | 22.8 A |
| Rated output power | 15 kW |
| Max. apparent power | 15 kVA |
| Output mode | 3-phase (3/N/PE), 380 / 400 Vac |
| Rated output frequency | 50 Hz / 60 Hz |
| Rated output current | 22.8 A / 21.7 A |
| Max. output current | 22.8 A |
| THDv | ≤3% (linear load) |
| Transfer time | ≤10 ms |
| Max. efficiency | 98.2% |
| MPPT efficiency | 99.9% |
| Protections | over / under voltage, over / under frequency, overload, output short-circuit, over-temperature, residual current monitoring, output over-current, insulation resistance, anti-islanding, surge protection |
| Surge protection | DC Type II / AC Type III |
| Topology | Non-isolated |
| Parallel operation | Up to 6 units in parallel |
| IP rating | IP66 |
| Operating temperature | -25°C to +60°C |
| Cooling | Smart cooling |
| Max. altitude | 3,000 m |
| Noise at 1 m | ≤45 dB |
| Dimensions (W×H×D) | 500 × 680 × 270 mm |
| Packaged dimensions | 615 × 885 × 370 mm |
| Net weight | 41 kg |
| Gross weight | 47 kg |
| Installation | Wall-mounted |
| Safety | IEC/EN 62109-1/-2 |
| EMC | EN 61000-6-1/-2/-3/-4 |
| Grid connection | VDE 0126, EN 50549, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018 |
Frequently asked
Do I need a three-phase supply?
Can I expand later?
Is this for grid export?
Related products
Savings: actual savings depend on your load profile, tariff, battery size, solar generation, usage timing and installation design.
Grid export: none is needed. This system is designed for self-consumption and backup, so savings never depend on CEB or LECO export approval, net metering paperwork, or utility conditions.
Specifications and warranty: specifications per the official EAST datasheet; 10-year warranty, confirmed on quotation and local project scope.
