Cut diesel by 80%.
Keep critical loads on.
The EAPVESS130K is a diesel–solar–storage hybrid microgrid in a cabinet. One intelligent controller runs your site on solar and stored energy first — and starts the generator only as a last resort.
The economics, at a glance
Every generator hour avoided is fuel not purchased.
Rs 21,140,000 gets you

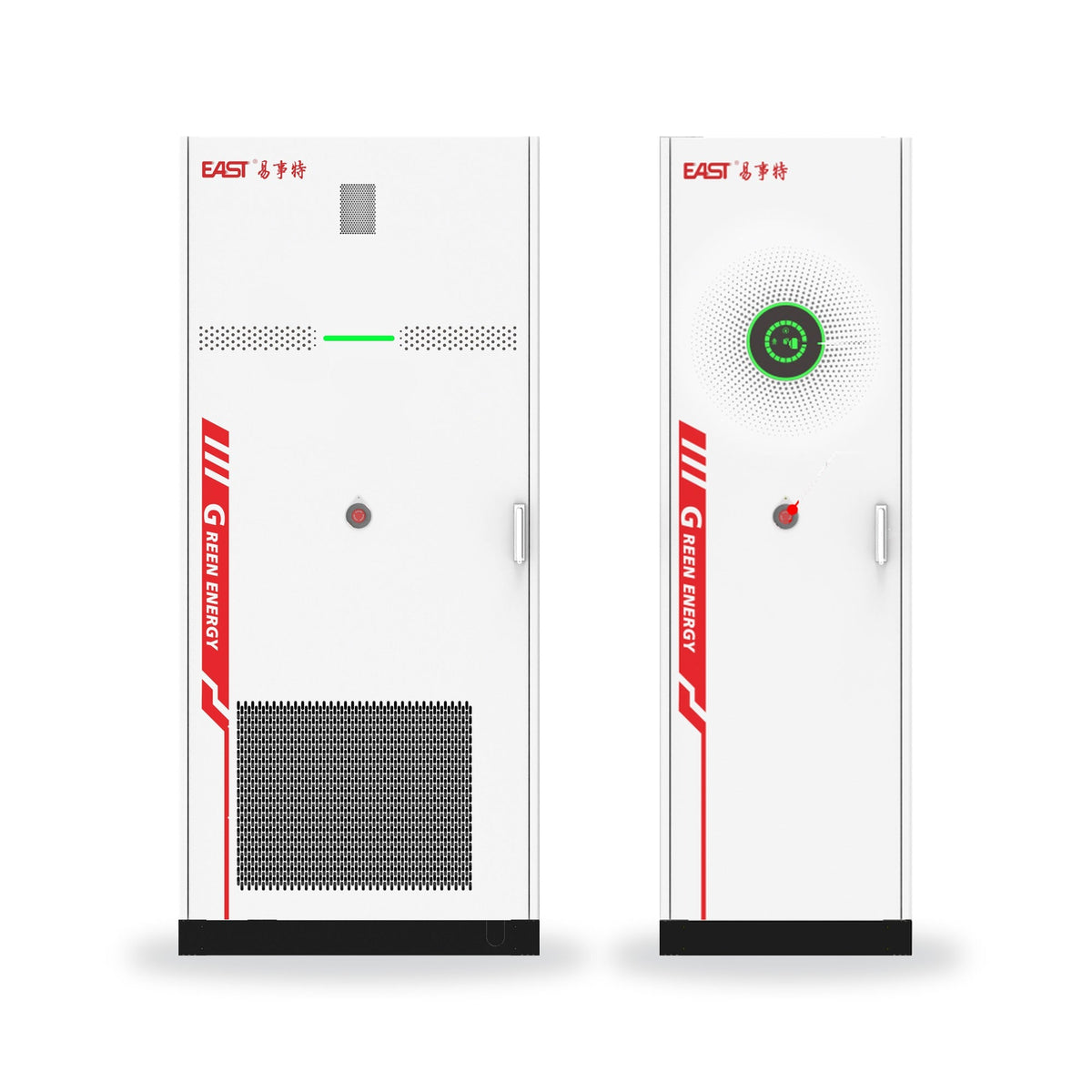

The complete two-cabinet system — the equipment cabinet (bi-directional PCS, six-MPPT solar input, EMS microgrid controller, and the grid- and generator-communication/control interface hardware) and the battery cabinet (261 kWh LFP with liquid cooling, aerosol fire suppression and high-voltage box) — factory-integrated and delivered as one outdoor system. Not included: the solar panels (the cabinet provides the 260 kW PV input; panels are quoted separately), the diesel generator (the system connects to your existing or a new genset), and project engineering — utility/grid approval, protection study and settings, external ATS/switchgear, cabling and containment, civil foundations, and generator/ATS integration and commissioning — which are confirmed on a commercial site survey because they vary so much by site.

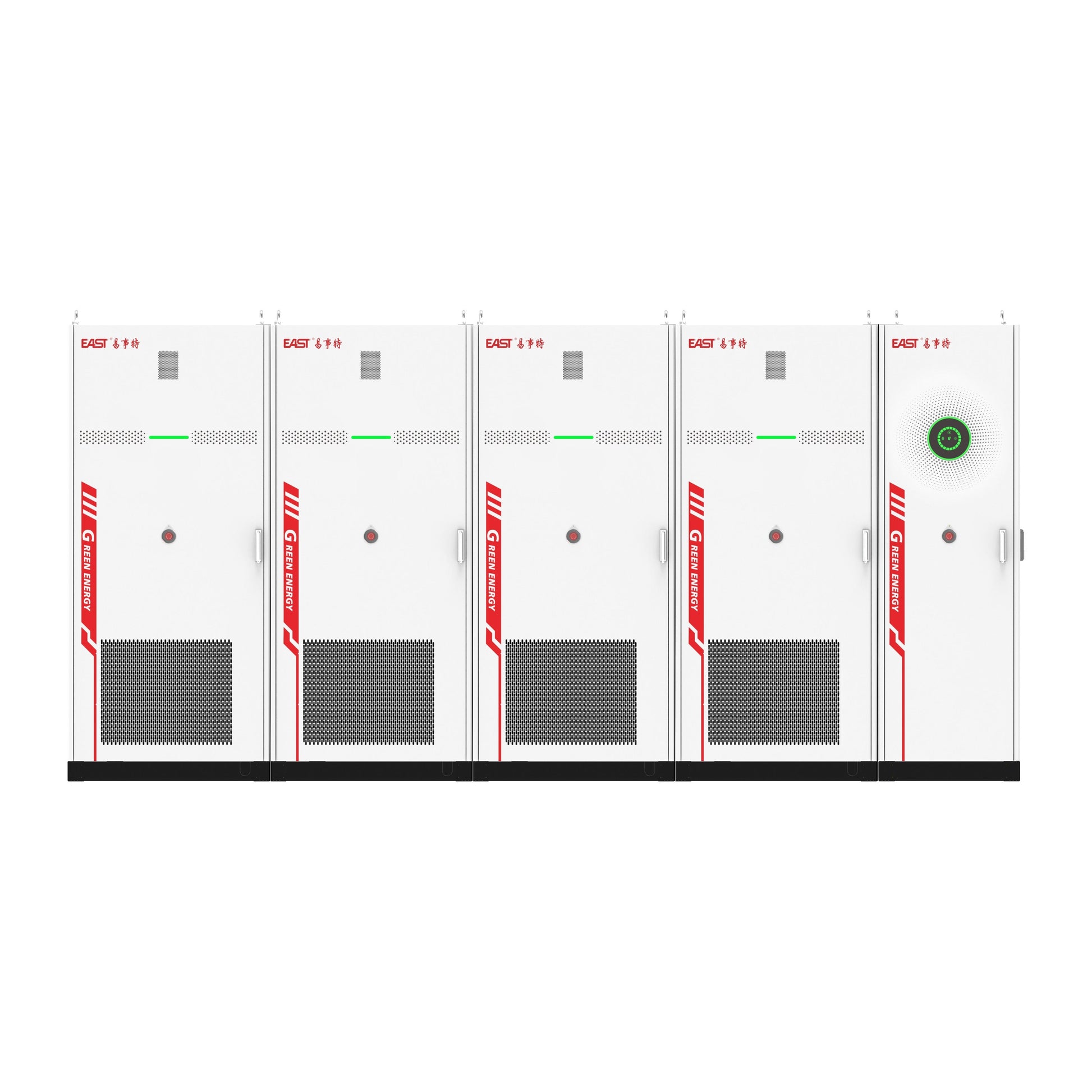

Indicative equipment price for the base configuration — one equipment cabinet and one 261 kWh battery cabinet. VAT, price validity and any exchange-rate adjustment, plus the solar array, switchgear, cabling, civil works, delivery and commissioning, are confirmed on your engineering quotation. Product images may illustrate a larger multi-cluster configuration.
One controller, four power sources.
Solar first
Up to 260 kW of PV runs the site and charges the battery through the day across six MPPT trackers — the site's lowest marginal-cost energy source.
Battery next
261 kWh of LFP storage carries the load into the evening and through peak-tariff windows. Expandable to a full 8-hour backup system.
Grid when useful
In grid-connected mode the system charges off-peak and discharges at peak for time-of-use arbitrage, with power factor ≥0.99 and THDi ≤3%.
Generator only as last resort
The EMS starts the diesel generator only when solar, battery and grid can't cover the load — reducing generator runtime, fuel and maintenance by more than 80%.
Why sites choose the EAPVESS130K.
Cut diesel by 80%+
Solar and storage do the heavy lifting; the generator becomes a rarely-used backup. EAST reports comprehensive energy cost reduced by up to 75% versus a diesel-only site.
Uninterrupted power
Millisecond-level switching (<20 ms grid/off-grid) and true black-start capability keep designated critical loads running through outages, subject to battery state of charge and approved site design. Highly sensitive equipment may still warrant a dedicated UPS.
Peak-shaving & arbitrage
Shift load out of expensive peak windows and, on grid, arbitrage the peak/off-peak price difference. Outcomes depend on tariff, load profile and operation.
Liquid-cooled, long life
Cold-plate liquid cooling holds cell-to-cell temperature difference under 3 °C, supporting >8,000 cycles and cutting auxiliary power by ~30% versus air-cooled cabinets.
Safe by design
Open aerosol fire suppression across the full cabinet, real-time safety monitoring with early warning, 3-level short-circuit and 4-level active protection, and per-pack aerogel insulation.
Built for harsh sites
C4 corrosion resistance (C5 optional), IP54 cabinet with IP65 distribution / IP66 PCS / IP67 battery packs — engineered for islands, cement plants and mining areas.
The commercial case for diesel displacement.
A commercial site running a diesel generator pays for every litre it burns. By putting solar and 261 kWh of storage in front of the generator and letting an EMS decide when — if ever — the genset runs, the EAPVESS130K targets a diesel-consumption reduction of more than 80% and a comprehensive energy-cost reduction of up to 75% against a diesel-only baseline (EAST figures). Fewer generator hours also means lower maintenance, less noise, and roughly 80% lower carbon emissions. In grid-connected mode, off-peak charging and peak discharging add a further arbitrage return. Actual savings and payback depend on your tariff, fuel price, load profile, solar sizing and how the system is operated — we model these for your specific site in the proposal.
Full specifications
| System nominal capacity | 261 kWh |
| Cell chemistry | LFP 3.2 V 314 Ah |
| Rated voltage | 832 Vdc |
| Battery cluster range | 728–949 Vdc, 1P260S |
| Max expandable | 4 clusters (up to an 8-hour system) |
| Cooling | Liquid cooling, cold-plate type |
| Cycle life | ≥ 8,000 cycles @ 25 °C |
| Charge/discharge rate | 0.5P |
System role
A diesel–PV–storage hybrid microgrid: orchestrates grid, solar, generator and battery via an on-board EMS for maximum solar self-consumption, peak-shaving, arbitrage and backup. Sized to your load, tariff and fuel cost.
Expansion
Horizontal: up to 4 battery strings → 8-hour backup system. Vertical: up to 4 systems in parallel on the AC side → 520 kW output.
Expansion note: systems with 3 or 4 battery cabinets require the EAST ESMU energy-storage management unit and DC switchgear — included in the relevant quotation.
Installation
Two-cabinet outdoor siting on prepared bases, three-phase connection, generator/ATS integration, grid-interface engineering and commissioning by MyEnergy Solutions, per project design.
EAPVESS130K 261kWh Diesel–PV–Storage Hybrid System — full datasheet
| Battery type | LFP 3.2 V 314 Ah |
| System nominal capacity | 261 kWh |
| Rated voltage | 832 Vdc |
| Battery cluster range | 728–949 Vdc |
| Assembly method | 1P260S |
| Max expandable quantity | 4 clusters (3–4 cabinets require ESMU + DC switchgear) |
| Cooling mode | Liquid cooling (cold-plate type) |
| Max input power | 260 kW |
| Max input voltage | 950 Vdc |
| Rated input voltage | 810 Vdc |
| Start-up voltage | 220 Vdc |
| Min operating voltage | 200 Vdc |
| MPPT voltage range | 200–950 Vdc |
| Max MPPT input current | 52 A (55 A instantaneous) |
| Number of MPPT | 6 (max 3 strings per MPPT) |
| Rated power | 260 kW / 130 kW |
| Voltage range | 380/400 Vac (−20% to +20%), 3L/N/PE |
| Rated input / output current | 394 A / 376.8 A · 197 A / 188.4 A |
| Rated frequency | 50 Hz ± 2.5 |
| Total harmonic distortion (THDi) | ≤ 3% |
| Power factor | ≥ 0.99 |
| Generator rated power | 130 kW |
| Generator voltage | 380/400 Vac (−20% to +20%), 3L/N/PE |
| Generator rated current | 197 A / 188.4 A |
| Load rated power | 130 kW |
| Load rated AC current | 197.5 A |
| Load frequency | 50 Hz ± 2.5 / 60 Hz ± 5 |
| AC wiring method | Three-phase four-wire |
| Grid / off-grid switching time | < 20 ms |
| Power response time | ≤ 200 ms |
| Max conversion efficiency | 99% |
| European / MPPT efficiency | 98.2% / 99.9% |
| System functions | Active & reactive power dispatch, grid voltage support, three-phase unbalance compensation, harmonic suppression, black start, peak-shaving & valley-filling |
| Communication | LAN, RS485, TCP/IP, IEC61850 |
| Remote monitoring | EMS + mobile app |
| Fire protection | Full-cabinet open aerosol + active monitoring + water fire protection (pack-level perfluorohexanone optional) |
| Protection | 3-level short-circuit, 4-level active protection, emergency stop, door lock |
| IP rating | IP54 cabinet · IP65 distribution · IP66 PCS · IP67 battery pack |
| Corrosion resistance | C4 standard (C5 optional) |
| Operating temperature | −20 to 60 °C (derating above 45 °C) |
| Relative humidity / altitude | < 95% RH non-condensation · < 4000 m (derating above 2000 m) |
| Noise level | < 75 dB |
| Battery cabinet | 1000 × 1350 × 2250 mm · ≤ 2200 kg |
| Equipment cabinet | 700 × 1350 × 2250 mm · ≤ 1000 kg |
| Combined weight | ≤ 3200 kg |
| Warranty | 10-year warranty on eligible EAST ESS packages. Final terms and covered components confirmed in your official quotation. |
Proven applications.
PV-storage-charging hubs
Solar, storage and EV charging integrated at fuel stations and fleet depots.
Factory & hotel peak-shaving
User-side storage that shaves demand charges and shifts load off the peak tariff.
Diesel–PV–storage microgrids
Islanded and expressway sites where the grid is weak, absent or expensive.
Remote & harsh sites
Islands, mining and cement plants that today run on continuous diesel.
Up to 10-year warranty
10-year warranty on eligible EAST ESS packages. Final warranty terms and covered components will be confirmed in your official quotation. Specifications are taken from the official EAST datasheet. MyEnergy Solutions is the authorised EAST Group distributor for Sri Lanka and the Maldives.
Frequently asked
How does it cut my diesel bill?
Do I keep my existing generator?
Will it keep critical loads running in a blackout?
Can it be expanded?
Is it suitable for outdoor and harsh environments?
How is it sized and priced?
Related products
Savings: actual diesel, energy-cost and payback outcomes depend on your load profile, tariff, fuel price, battery and solar sizing, usage timing and how the system is operated. Figures cited are EAST reference figures, not a guarantee for your site.
Grid export: not required for savings. This system is designed for self-consumption, backup and diesel displacement; any site-specific connection, protection or utility requirements are confirmed during engineering review.
Specifications and warranty: specifications per the official EAST datasheet; warranty coverage of up to 10 years, confirmed on quotation and local project scope.
